Air cooled cold room evaporator is a heat dissipation device for refrigeration equipment, and its cooling temperature is suitable for the cold storage room.
- Description
- Features
Product Description

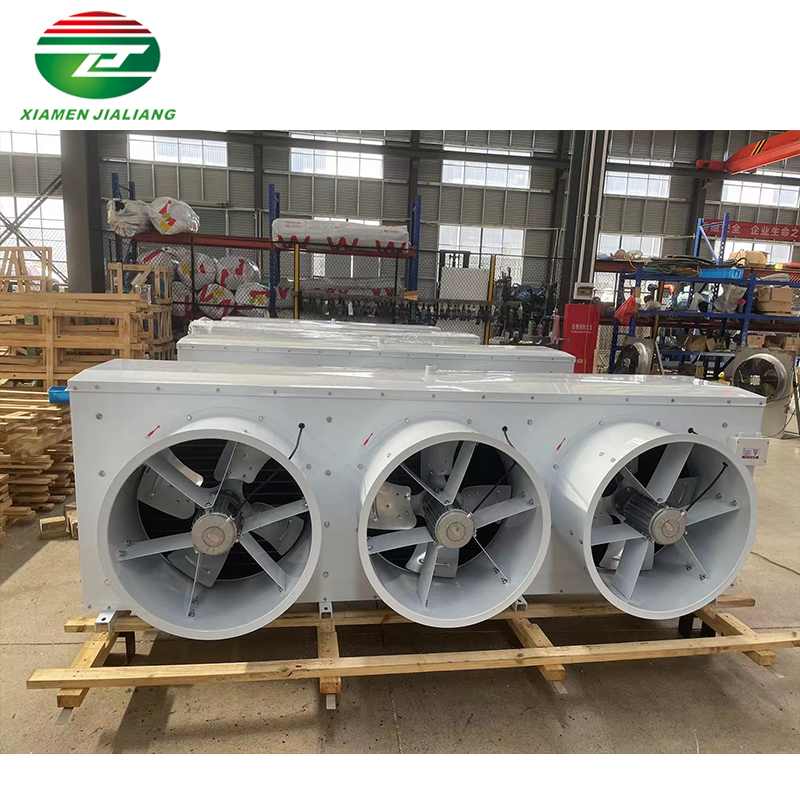

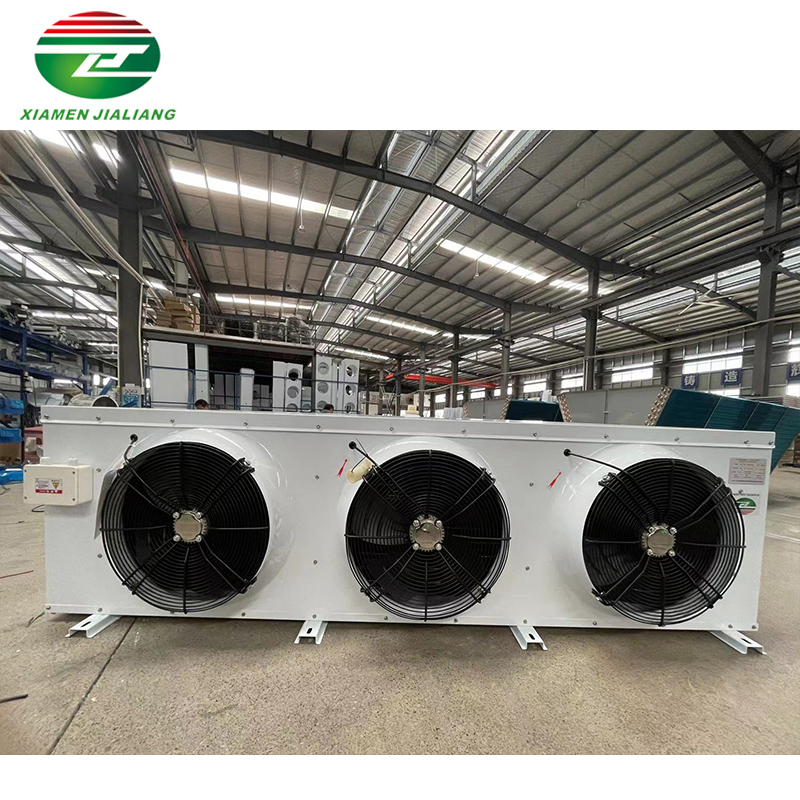

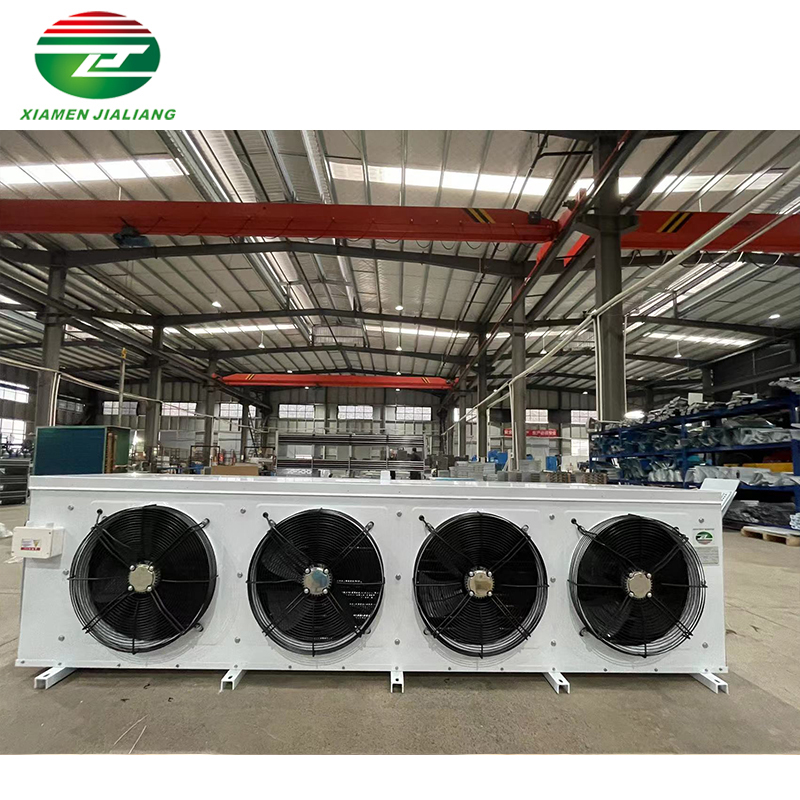

DL Series Cold Room Condensors Evaporators
1.Blue fins/Hydrophilic aluminum foil: there are Anti-corrosion material in its surface,it have good anti-corrosion performance
2.Wavy fins: it can form air flow and speed air flow .
3.Stainless steel screws: Better Anti-corrosion performance ,more suitable for evaporator using environment.Better Anti-corrosion performance and longtime using,beautiful.

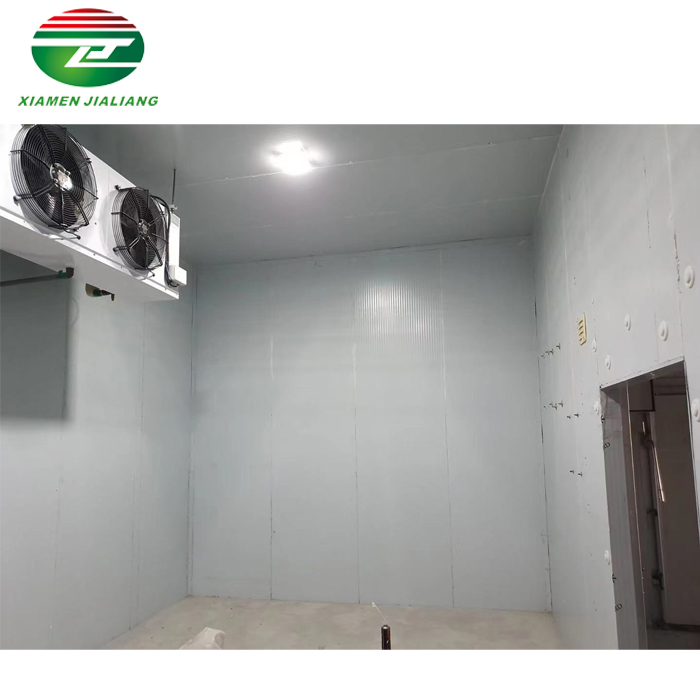

4.Wall-hanging type: Easy to install,saving space,save install cost.
5.Acceptable OEM: Save time and effort, convenient to facilitate brand promotion for customer
| Model | DL20 | DL25 | DL40 | DL55 | DL80 | DL105 |
| Refrige-Rating Capacity | 4.3KW | 5.3KW | 8.4KW | 11.6KW | 16.8KW | 23.2KW |
| Cooling Area | 22㎡ | 25㎡ | 40㎡ | 55㎡ | 80㎡ | 105㎡ |
| Diameter of Feed Inlet | 12mm | 12mm | 16mm | 16mm | 19mm | 19mm |
| Diameter of Tail Pipe | 16mm | 16mm | 25mm | 25mm | 32mm | 32mm |
| Wind Rate | 2450*2m³/h | 2450*2m³/h | 3950*2m³/h | 3950*2m³/h | 5400*2m³/h | 5400*2m³/h |
| Quantity | 2N | 2N | 2N | 2N | 2N | 2N |
| Fan Blade | 380v | 380v | 380v | 380v | 380v | 380v |
| Power | 2*150W | 2*150W | 2*180W | 2*180W | 2*180W | 2*180W |
| Air Throw | 8m | 8m | 10m | 10m | 15m | 15m |
| Coil Unit | 0.9KW | 1.2KW | 1.3KW | 1.5KW | 2.4KW | 3.6KW |
| Drain Pan | 0.9KW | 1.2KW | 1.3KW | 1.5KW | 1.2KW | 1.2KW |
| Model | DL125 | DL160 | DL185 | DL210 |
| Refrige-Rating Capacity | 27.6KW | 34.6KW | 40.3KW | 46.1KW |
| Cooling Area | 125㎡ | 160㎡ | 185㎡ | 210㎡ |
| Diameter of Feed Inlet | 19mm | 19mm | 25mm | 25mm |
| Diameter of Tail Pipe | 38mm | 38mm | 42mm | 42mm |
| Wind Rate | 5400*3m³/h | 5400*3m³/h | 5400*4m³/h | 5400*4m³/h |
| Quantity | 3N | 3N | 4N | 4N |
| Fan Blade | 450mm | 450mm | 450mm | 450mm |
| Voltage | 380V | 380V | 380V | 380V |
| Power | 3*280W | 3*280W | 4*280W | 4*280W |
| Air Throw | 15m | 15m | 15m | 15m |
| Coil Unit | 4.8KW | 5.1KW | 6.0KW | 6.6KW |
| Drain Pan | 1.6KW | 1.7KW | 2.0KW | 2.2KW |
| Model | DL260 | DL330 | DL410 | DL470 | DL580 |
| Refrige-Rating Capacity | 52.0KW | 66.0KW | 82.0KW | 94.0KW | 116.0KW |
| Cooling Area | 260㎡ | 330㎡ | 410㎡ | 470㎡ | 580㎡ |
| Diameter of Feed Inlet | 25mm | 25mm | 25mm | 25mm | 28mm |
| Diameter of Tail Pipe | 50mm | 50mm | 50mm | 50mm | 50mm |
| Wind Rate | 12000*2m³/h | 12000*3m³/h | 12000*3m³/h | 12000*3m³/h | 12000*4m³/ |
| Quantity | 2N | 3N | 3N | 3N | 4N |
| Fan Blade | 600mm | 600mm | 600mm | 600mm | 600mm |
| Voltage | 380V | 380V | 380V | 380V | 380V |
| Power | 2*1500W | 3*1500W | 3*1500W | 3*1500W | 4*1500W |
| Air Throw | 20m | 20m | 20m | 20m | 20m |
| Coil Unit | 6.6KW | 11.0KW | 11.0KW | 16.0KW | 17.6KW |
| Drain Pan | 2.2KW | 2.2KW | 2.2KW | 2.0KW | 2.0KW |
Customized Services

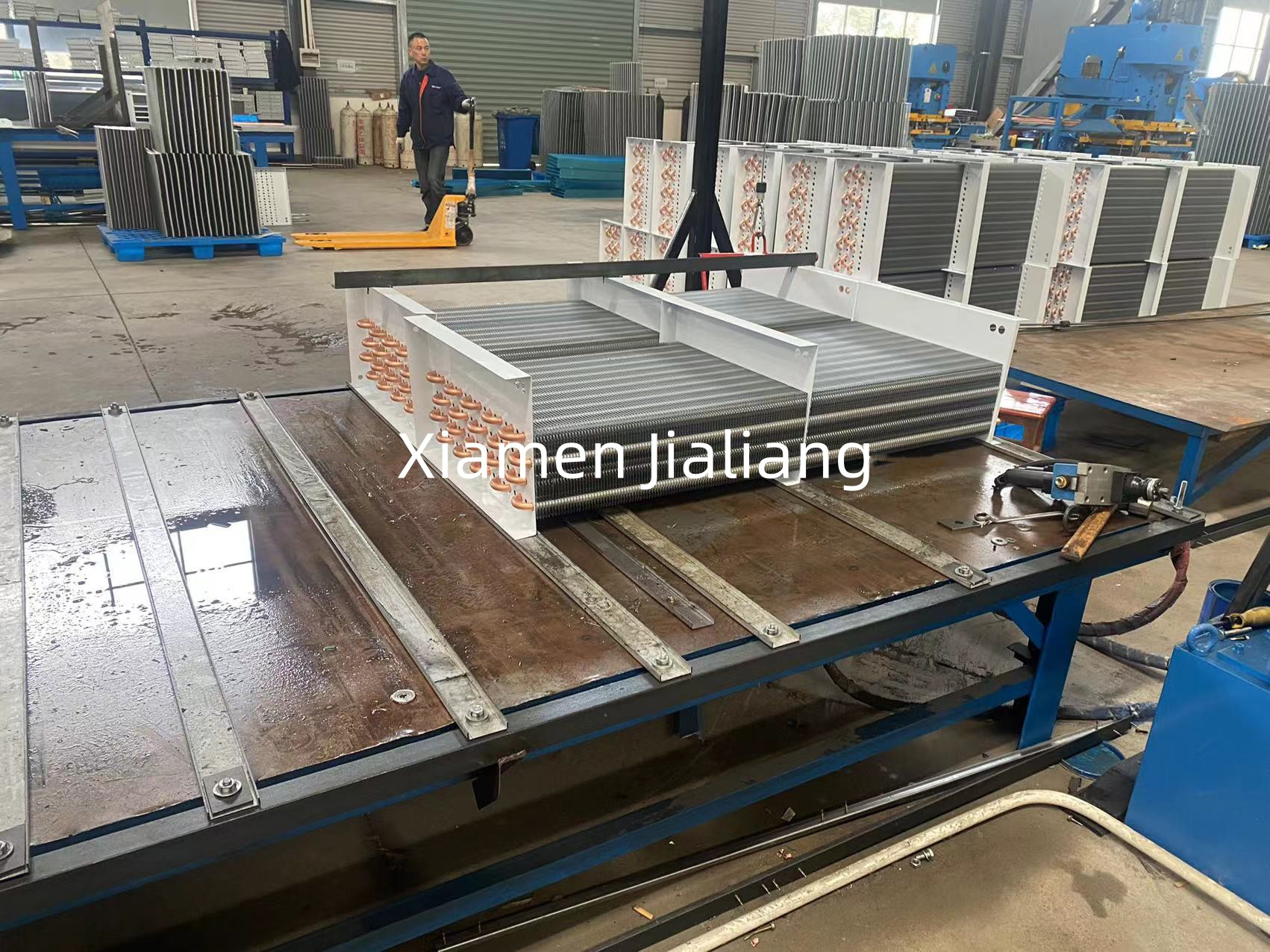

On Site factory
We have over 24 years of work experience in the refrigeration field. We are young, energetic, innovative, and confident! Our products are now available in some countries in South America, Asia, the Middle East, Europe, Oceania, and Africa. Our stable quality, competitive prices, and instant service help us gain more and more customers.
In the future, we believe that you can enjoy more fresh life in our industry. We hope to work with you to realize this dream and help more and more people enjoy a high-quality life.
FAQ
| Q1: What are the current export markets DL series evaporators? |
| A1: So far, we have exported to more than 112 countries and our market is not limited to regions with hot weather, regions such as Russia where the temperature is too low also use our cold rooms to preserve vegetables and fruits in the cold winter. |
| Q2: Do you have DL series evaporators samples? |
| A2: There are samples that require sample fees |
| Q3: What is your delivery time DL series evaporators? |
| A3: Customized products, generally 30 working days, the specific situation according to the product needs to confirm |
| Q4: How to choose the right refrigeration equipment DL series evaporators? |
| A4: Please provide the size and temperature of the cold storage, our engineers will recommend it to you |
| Q5: What should we do if we can't find what we're looking for on your website DL series evaporators? |
| A5: Customized products, according to the number of products determined |
