Product Description

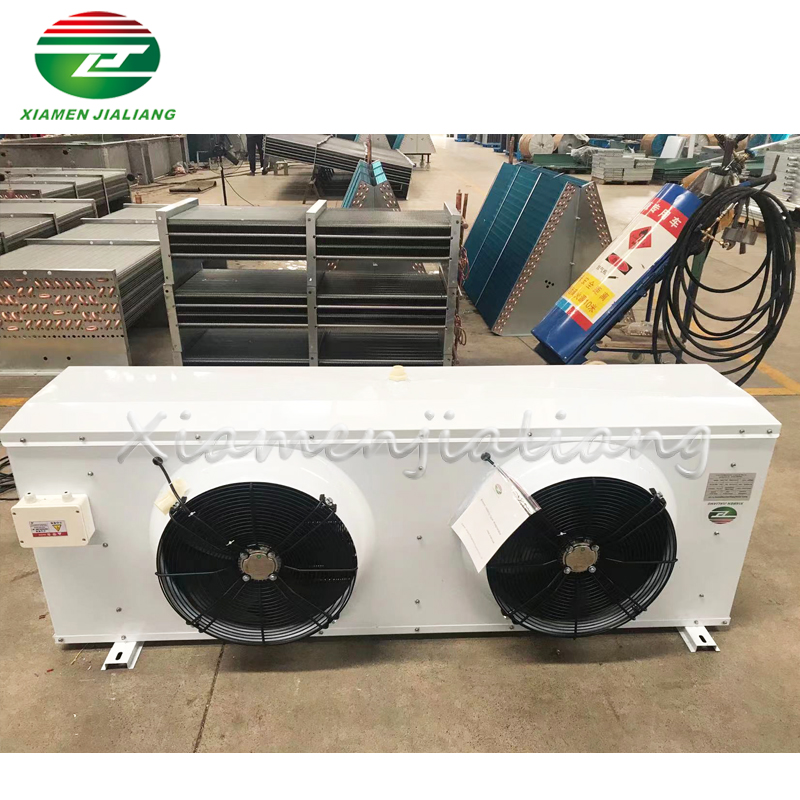

Standard Ceiling Type Regenerative Cold Room Evaporator
1.Blue fins/Hydrophilic aluminum foil: there are Anti-corrosion material in its surface,it have good anti-corrosion performance
2.Wavy fins: it can form air flow and speed air flow .
3.Stainless steel screws: Better Anti-corrosion performance ,more suitable for evaporator using environment.Better Anti-corrosion performance and longtime using,beautiful.

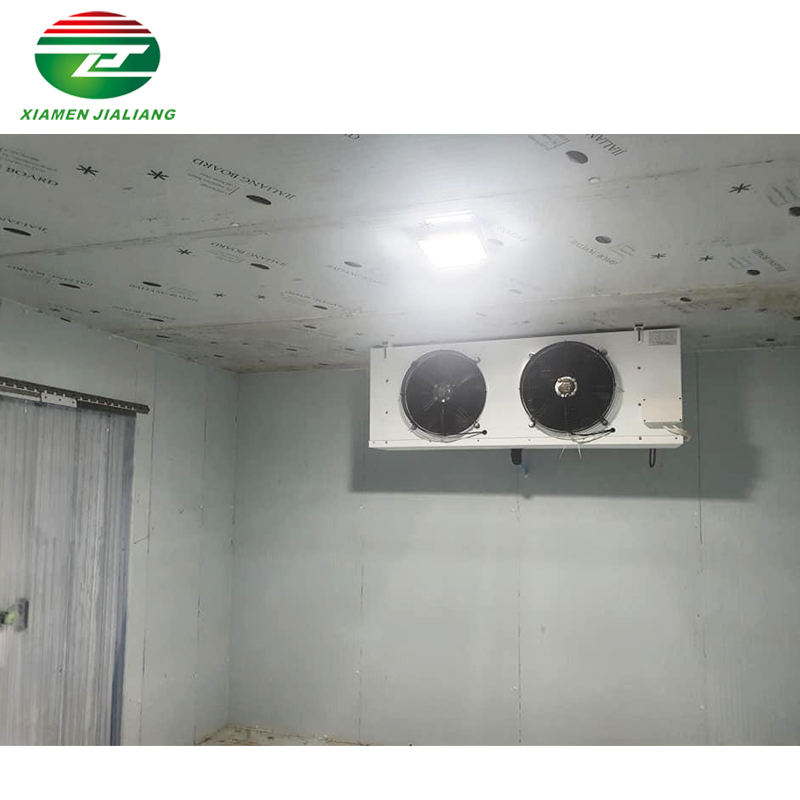

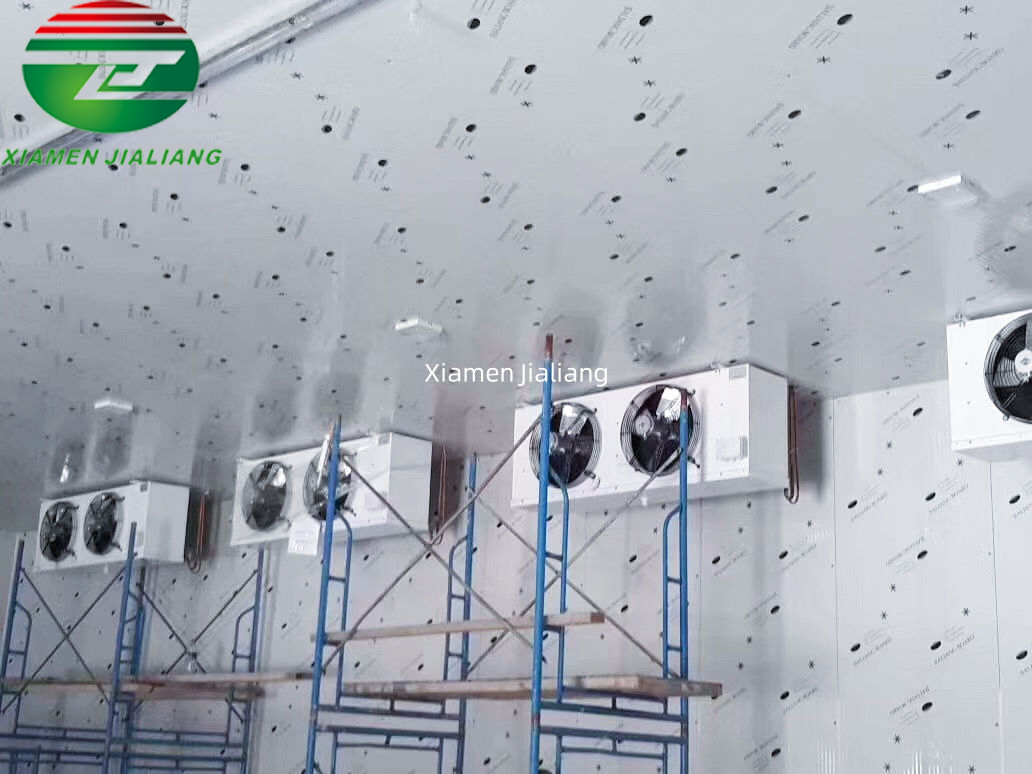

4.Wall-hanging type: Easy to install,saving space,save install cost.
5.Acceptable OEM: Save time and effort, convenient to facilitate brand promotion for customer
| Model | DD15 | DD22 | DD30 | DD40 | DD60 | DD80 |
| Refrige-Rating Capacity | 2.6KW | 3.9KW | 5.3KW | 7.0KW | 10.5KW | 14.0KW |
| Cooling Area | 15㎡ | 22㎡ | 30㎡ | 40㎡ | 60㎡ | 80㎡ |
| Diameter of Feed Inlet | 12mm | 12mm | 16mm | 16mm | 19mm | 19mm |
| Diameter of Tail Pipe | 16mm | 16mm | 25mm | 25mm | 32mm | 32mm |
| Wind Rate | 2450*2m³/h | 2450*2m³/h | 3950*2m³/h | 3950*2m³/h | 5400*2m³/h | 5400*2m³/h |
| Quantity | 2N | 2N | 2N | 2N | 2N | 2N |
| Fan Blade | 350mm | 350mm | 400mm | 400mm | 450mm | 450mm |
| Voltage | 380v | 380v | 380v | 380v | 380v | 380v |
| Power | 2*150W | 2*150W | 2*180W | 2*180W | 2*180W | 2*180W |
| Air Throw | 8m | 8m | 10m | 10m | 15m | 15m |
| Coil Unit | 1.8KW | 2.4KW | 2.0KW | 2.4KW | 4.2KW | 7.0KW |
| Drain Pan | 0.9KW | 1.2KW | 1.0KW | 1.2KW | 1.4KW | 1.4KW |
| Model | DD100 | DD120 | DD140 | DD160 |
| Refrige-Rating Capacity | 17.5KW | 21KW | 24.5KW | 28.0KW |
| Cooling Area | 100㎡ | 120㎡ | 140㎡ | 160㎡ |
| Diameter of Feed Inlet | 19mm | 19mm | 25mm | 25mm |
| Diameter of Tail Pipe | 38mm | 38mm | 42mm | 42mm |
| Wind Rate | 5400*3m³/h | 5400*3m³/h | 5400*4m³/h | 5400*4m³/h |
| Quantity | 3N | 3N | 4N | 4N |
| Fan Blade | 450mm | 450mm | 450mm | 450mm |
| Voltage | 380v | 380v | 380v | 380v |
| Power | 3*280W | 3*280W | 4*280W | 4*280W |
| Air Throw | 15m | 15m | 15m | 15m |
| Coil Unit | 8.0KW | 8.5KW | 10.0KW | 11.0KW |
| Drain Pan | 1.6KW | 1.7KW | 2.0KW | 2.2KW |
| Model | DD200 | DD250 | DD310 | DD360 | DD440 |
| Refrige-Rating Capacity | 35.0KW | 43.8KW | 54.3KW | 63.0KW | 77.0KW |
| Cooling Area | 200㎡ | 250㎡ | 310㎡ | 360㎡ | 440㎡ |
| Diameter of Feed Inlet | 25mm | 25mm | 25mm | 25mm | 28mm |
| Diameter of Tail Pipe | 50mm | 50mm | 50mm | 50mm | 50mm |
| Wind Rate | 12000*2m³/h | 12000*3m³/h | 12000*3m³/h | 12000*3m³/h | 12000*4m³/h |
| Quantity | 2N | 3N | 3N | 3N | 4N |
| Fan Blade | 600mm | 600mm | 600mm | 600mm | 600mm |
| Voltage | 380v | 380v | 380v | 380v | 380v |
| Power | 2*1500W | 3*1500W | 3*1500W | 3*1500W | 4*1500W |
| Air Throw | 20m | 20m | 20m | 20m | 20m |
| Coil Unit | 11.0KW | 17.6KW | 17.6KW | 20.0KW | 22.0KW |
| Drain Pan | 2.2KW | 2.2KW | 2.2KW | 2.0KW | 2.2KW |
Customized Services
On Site Factory
We have over 24 years of work experience in the refrigeration field. We are young, energetic, innovative, and confident! Our products are now available in some countries in South America, Asia, the Middle East, Europe, Oceania, and Africa. Our stable quality, competitive prices, and instant service help us gain more and more customers.
In the future, we believe that you can enjoy more fresh life in our industry. We hope to work with you to realize this dream and help more and more people enjoy a high-quality life.
FAQ
Q1: Can you provide insights about the current export markets for evaporators? |
A1: Our Evaporators are currently being supplied to more than 112 countries, showcasing their strong global demand. It's worth noting that these markets are not limited to regions with warm climates; even colder areas like Russia are adopting our Cold Room solutions to protect their produce during harsh winter conditions. |
Q2: Is it feasible to obtain a sample of the DD evaporator for evaluation? |
A2: Certainly, we offer the option of acquiring samples of our DD evaporator products. However, please be informed that a modest sample fee is associated with this service. |
Q3: What is the estimated timeline for delivery on orders placed for evaporators? |
A3: Given that our products are meticulously tailored to meet specific requirements, the standard production timeline is approximately 30 business days. For an accurate delivery schedule, we take into account the unique demands of each individual product order. |
Q4: Can you describe the packaging used to protect the evaporator during transportation? |
A4: We use plywood cases for packaging the products. |
