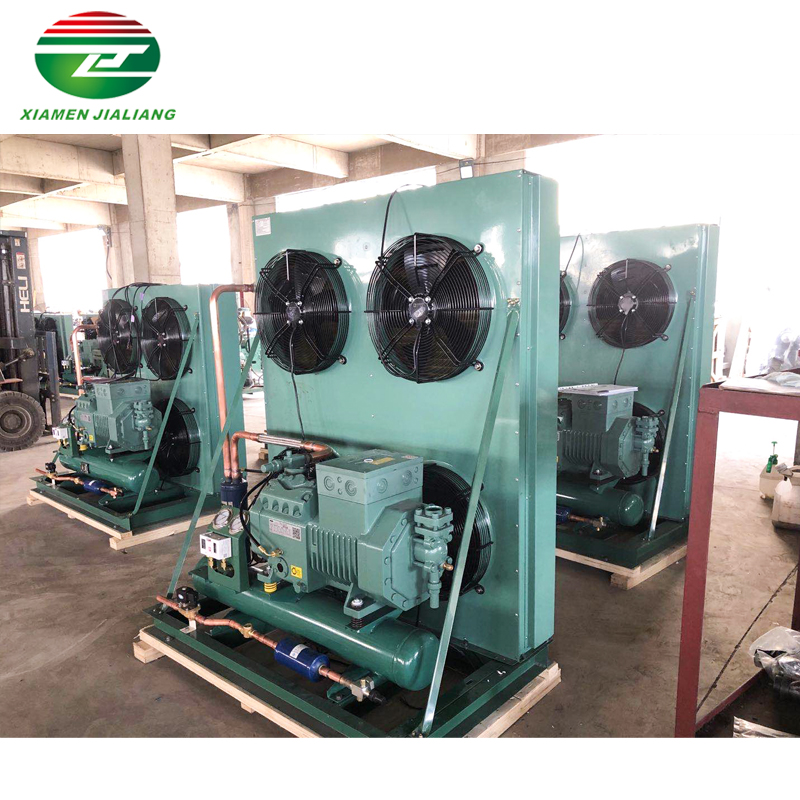

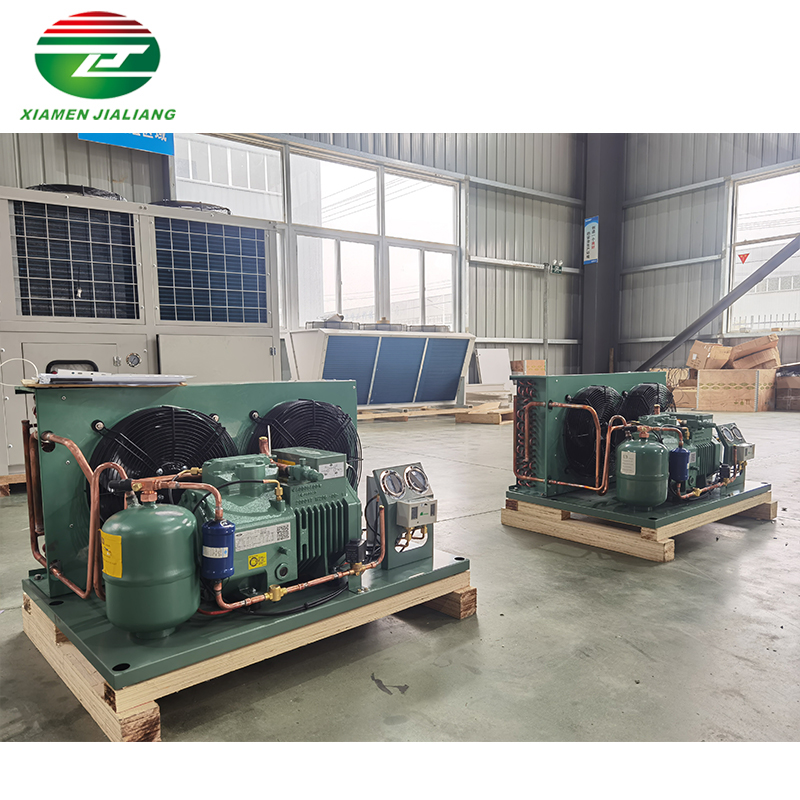

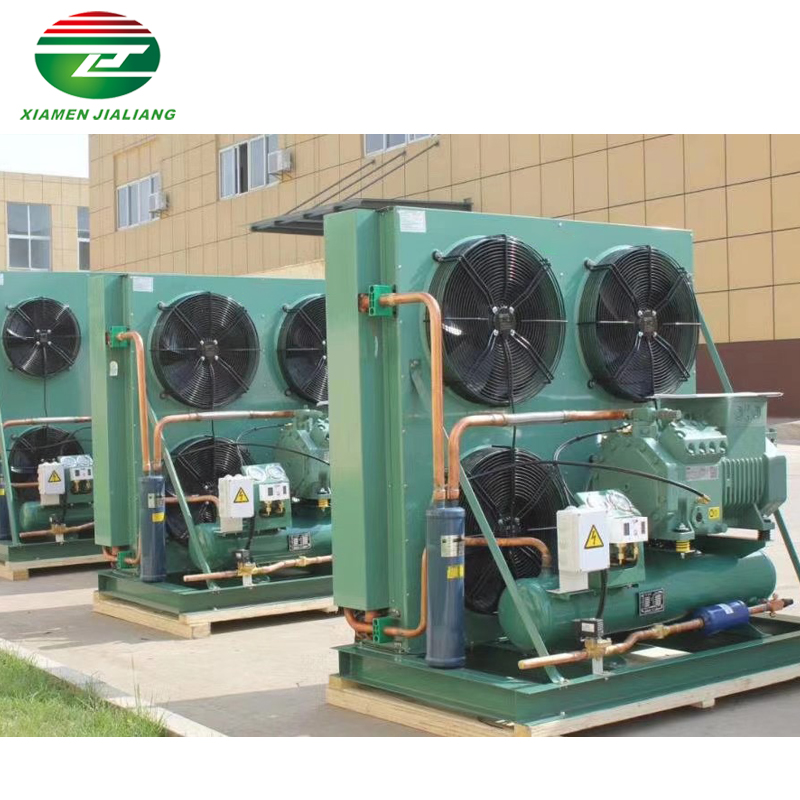

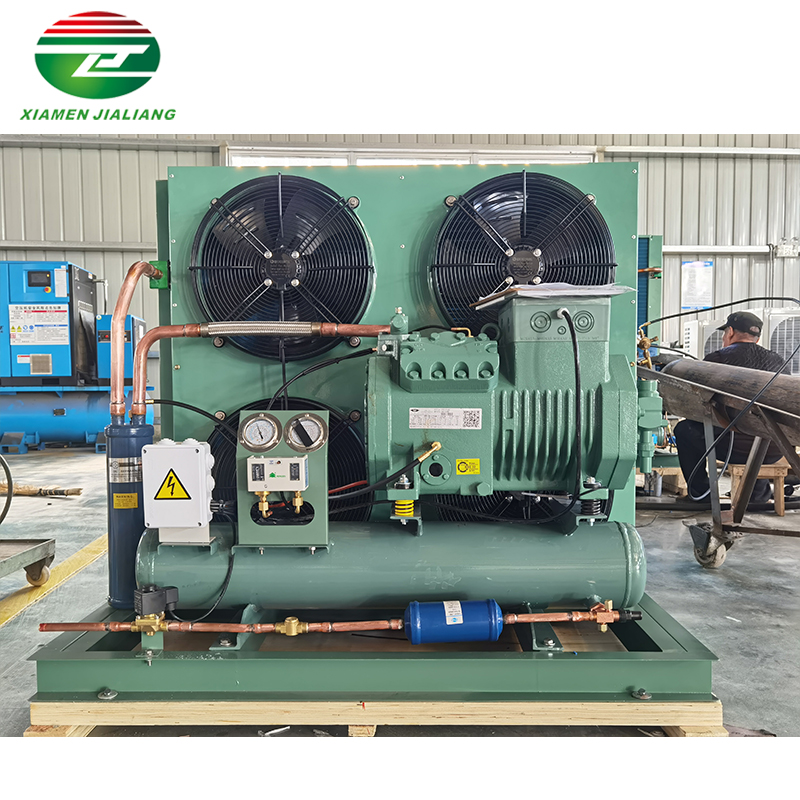

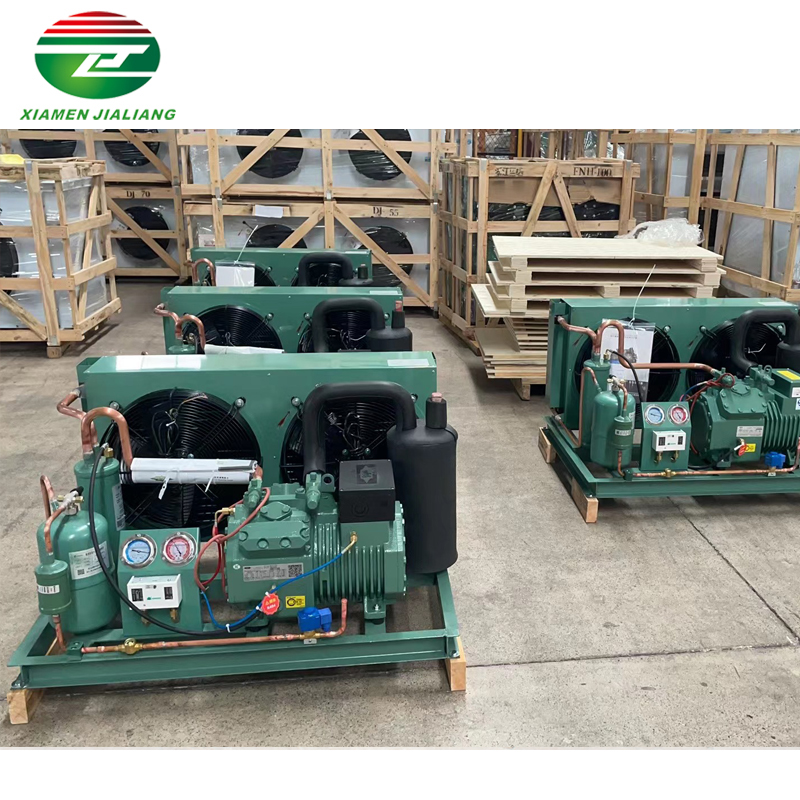

Three Phase Semi Hermetic 380V Condensing Unit
  • Three Phase Semi Hermetic 380V Condensing Unit Three Phase Semi Hermetic 380V Condensing Unit Three Phase Semi Hermetic 380V Condensing Unit Three Phase Semi Hermetic 380V Condensing Unit Three Phase Semi Hermetic 380V Condensing Unit Three Phase Semi Hermetic 380V Condensing Unit
    • Three Phase Semi Hermetic 380V Condensing Unit
    •  Condensing unit uses an original Bitzer compressor, which has low noise and stable operation

    • Get A Quote
    • Description
    • Features


    Three Phase Semi Hermetic 380V Condensing Unit


    Equipped with Compressor2HES-2Y2GES-2Y2FES-3Y2EES-3Y2DES-3Y2CES-4Y4FES-5Y4EES-6Y4DES-7Y4CES-9Y
    CompressorBitzer
    Temperature-10~15℃
    Capacity Level100%
    Refrigeration Capacity (0 ℃)3.49 KW4.01 KW4.93 KW6.41 KW7.45 KW9.50 KW10.27 KW12.89 KW15.14 KW18.91 KW
    Evaporator Capacity3.49 KW4.01 KW4.93 KW6.41 KW7.45 KW9.50 KW10.27 KW12.89 KW15.14 KW18.91 KW
    Input Power1.6KW1.89KW2.32KW2.66KW3.11KW3.95KW4.27KW5.39KW6.25KW7.89KW
    Current 400V3.34A3.66A4.36A5.27A5.86A7.10A7.89A9.45A11.17A13.50A
    Voltage Range380-420V

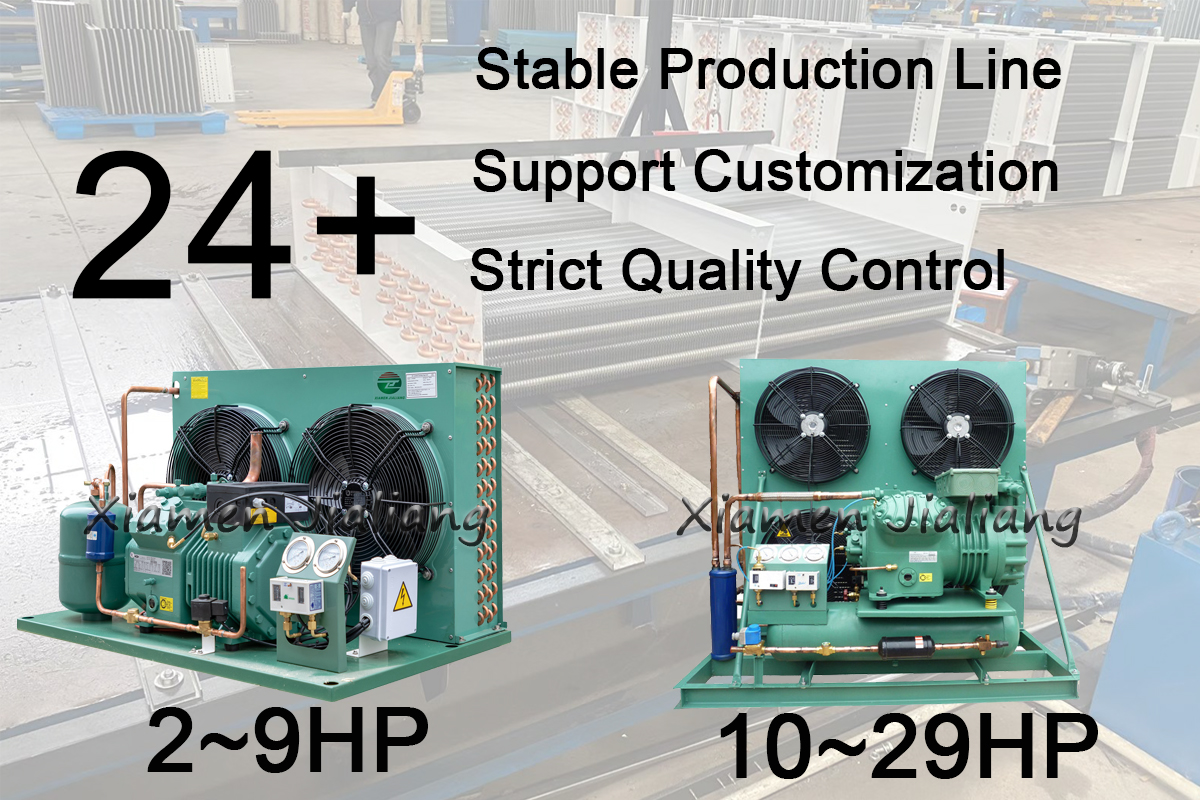

    HP2HP3HP3HP3HP3HP4HP5HP6HP7HP9HP

    Equipped with Compressor4VES-10Y4TES-12Y4PES-15Y4NES-20Y4HE-25Y
    Temperature-10~15℃
    Capacity Level100%
    Refrigeration Capacity (0 ℃)19.61KW23.8 KW27.0KW32.5KW43.0KW
    Evaporator Capacity19.61KW23.8 KW27.0KW32.5KW43.0KW
    Input Power7.74KW9.53 KW10.78KW12.89KW17.04KW
    Current 400V13.92A16.55A19.41A22.5A29.9 A
    Voltage Range380-420V
    HP10HP12HP15HP20HP25HP

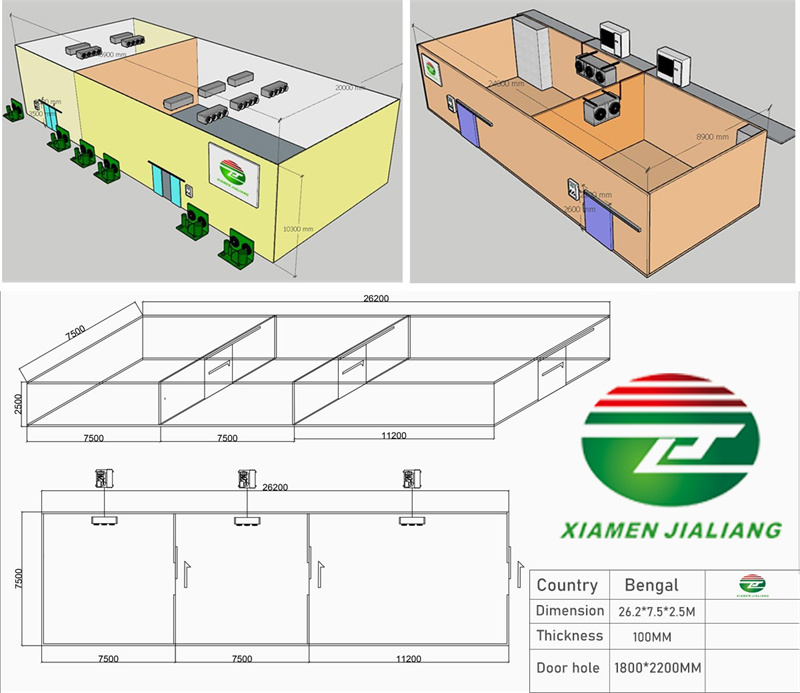

    Customized Services

    1.We provide “onestop service”from design,production, sales,installation,to after-sales services.

    2.We focuses on quality andservice.We not only providehigh quality products butalso service with professionand passion

    3.We has an excellent after-salesservice team to ensure that thefirst time to solve customerafter-sales problems

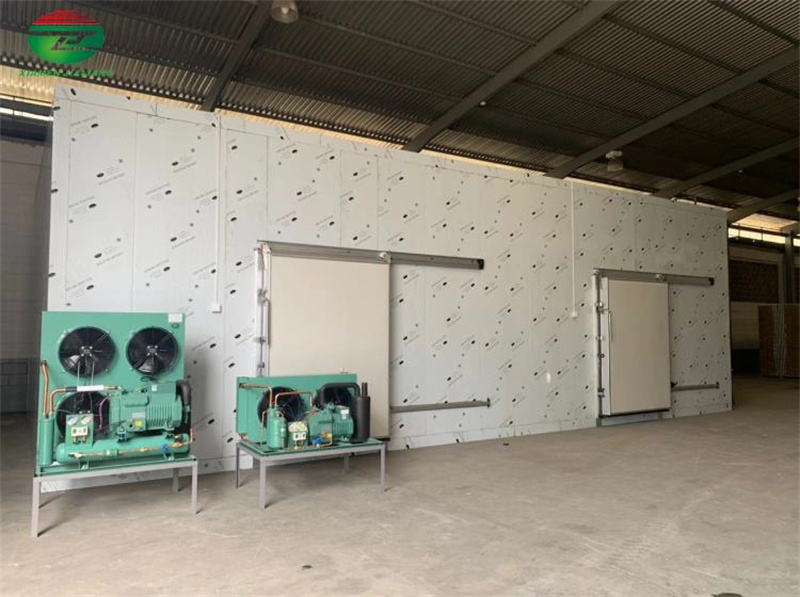

    4.We have experienced projectsaround the world,and ourteams provide reliablesolution services to meetcustomer needs

    Q1: How efficient is the refrigeration of a Bitzer condensing unit?

    A1: The refrigeration efficiency of a Bitzer condensing unit depends on its refrigeration system design and energy efficiency rating. High-quality units generally have higher refrigeration efficiency, achieving the same cooling effect with less energy consumption.

    Q2: What is the energy consumption of a Bitzer condensing unit?

    A2: The energy consumption of a Bitzer condensing unit depends on its refrigeration system design, operating time, and load, among other factors. High-quality units generally have lower energy consumption, resulting in reduced operating costs.

    Q3: Does a Bitzer condensing unit support customized design?

    A3: Yes, Bitzer condensing units typically support customized design, allowing for tailoring the size, configuration, and functions of the unit to meet specific customer requirements.

    Q4: What is the maintenance cost of a Bitzer condensing unit?

    A4: The maintenance cost of a Bitzer condensing unit varies depending on the type, specifications, and maintenance frequency of the unit. Regular maintenance and timely replacement of components can reduce long-term maintenance expenses.
